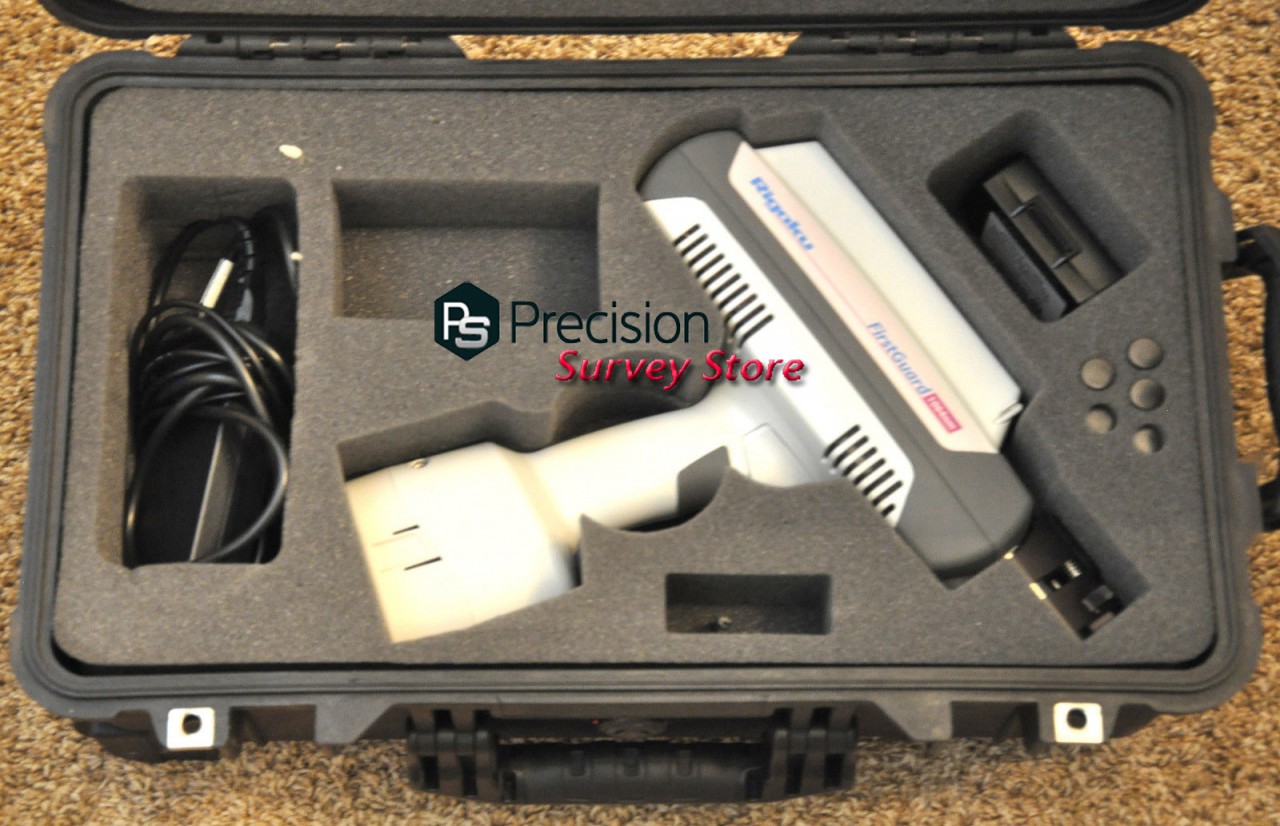

Rigaku FirstGuard Handheld Raman XRF Analyzer 1064nm

1064 nm Handheld Raman Spectrometer

The FirstGuard with 1064nm laser sets a new industry standard for identification of a significantly broader range of raw materials for rapid validation, while maintaining key customer requirements such as ease-of-use, portability, affordability and reliability.
Due to chronic fluorescence interference, competing 785nm instruments can only be used to verify a fraction of common materials used in the manufacturing of pharmaceutical and consumer goods products. The First-Guard with 1064nm can minimize, and often eliminate, fluorescence issues for most sample types providing broader compound coverage.
The use of FirstGuard with 1064nm also enables analysis through dark glass and plastic packages – something that is difficult to achieve with 785nm spectrometers.

FEATURES:

* Patented volume phase transmission grating with 95% spectral efficiency
* Cooled detectors – CCD and InGas
* High power – 490mW power variable in 1mW increments
* Variable focal point adjustment
* Switchable lithium ion battery
* Optional barcode reader
* Integrated vial holder
* 21 CFR Part 11 compliant software

FirstGuard Specifications

* Laser wavelength source : Single
* Dimensions (mm) : 122W x 311D x 314H
* Weight : 2.3 kg (5 lbs.)
* Grating: Transmission volume phase (VPG™)

1064nm Wavelength

* Spectral Range (cm-1) : 200 - 2000
* Spectral Resolution (cm-1) : 15 - 18
* Laser Output Power (mW) : 30 - 490
* Detector : TE cooled InGaAs

Operation and Analysis

* Software : Micro 2020, Windows XP/Vista/Win7
* Log-In Process : Multi-user level expiring passwords
* Analysis Speed : Exposure (automatic or user adjustable)
                   532 and 785: 20ms – 30s
                   1064: 20ms – 10s
* Analysis Display : Simplified pass-fail, spectra (overlay possible), or full analysis display
* Results Display : Pass-fail, or identification (with HQI)
* Calibration Frequency : Recommended daily
* Data Transfer : USB2.0/WiFi
* Export File Format : spc, csv, and pdf
* Data Storage Capacity : 14.9 GB
* Battery Type/Life* : Li ION rechargeable/3 hrs
* Sample States : Powders, liquids, solids

Spectral Library

* Standard (260), user library, and 3rd party library (optional)

Miscellaneous

* Compliances : IQ/OQ/PQ & 21 CFR Part 11
* Safety Compliance : CE
* Compliance Standards : ASTM
* Power : 100-240VAC/+24VDC
* Interchangeable Battery : Optional
* Ambient Temperature (C°) : -10 to 30
