Go! SCAN 50 3D Scanner - the top model in the line GO! SCAN company Creaform. This is a mobile and easy-to-use device designed primarily for 3D-scanning medium and large sites (ranging from 0.3 to 3 meters). GO! SCAN 50 is characterized by high speed, the ability to transmit the color and geometry of the object, a great autonomy and ease of use. The versatility of this 3D-scanner is used to solve problems in the field of reverse engineering, manufacturing, medicine, archeology, design, and other industries.

Technology of 3D-scanning

* Laser: Laser triangulation phase
* Light source: Light-emitting diode

* Properties of 3D-scanning
* Transfer color: Yes
* Capture textures: Yes
* 3D-Resolution: 0.5 mm
* Accuracy: 0.1 mm
* Scan speed: 550 000 measurements per second
* Scan Area: 380h380 mm
* Operating distance from the subject: 400 mm

Software:

* Software: VXelements
* Output format: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
* Interface: USB 2.0
* Supported operating systems: Windows Vista / XP / 7/8 / 8.1

* Dimensions of the device
* Dimensions: 150x172x251 mm
* Weight: 0.95 kg

Features:

* Scan Area: 380h380 mm
* Resolution: 0.5 mm
* Accuracy: 100 microns
* The depth of field of field: 250 mm
* The size of the scanned object: 0.3-3 m
* Light Source: White LED

Includes:

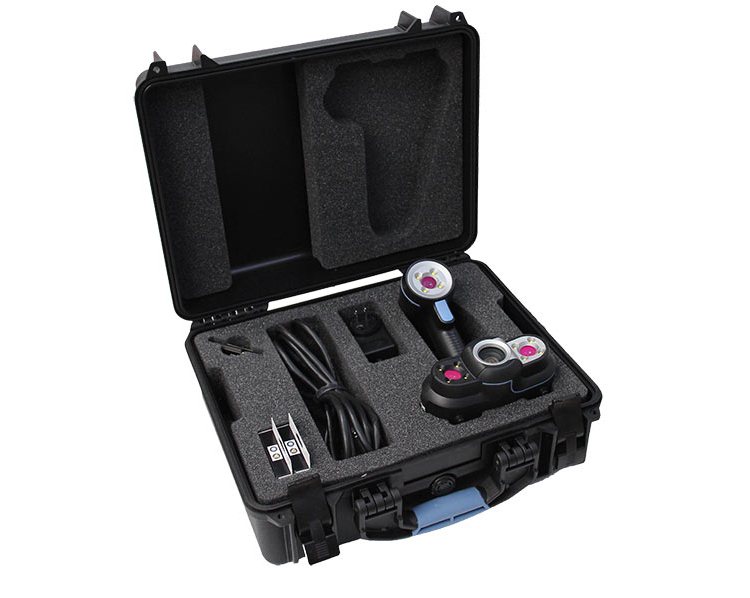

* Creaform Go!SCAN 50 3D Scanner
* Carrying case
* Calibration plate
* Power supply
* Custom USB cable
* 2 x 500 positioning targets
* 1-year warranty on parts and labor

Optional Accessories:

* Certified laptop computer
* 3D scanner external battery
* Rugged tablet with VXremote
* Manual turntable
