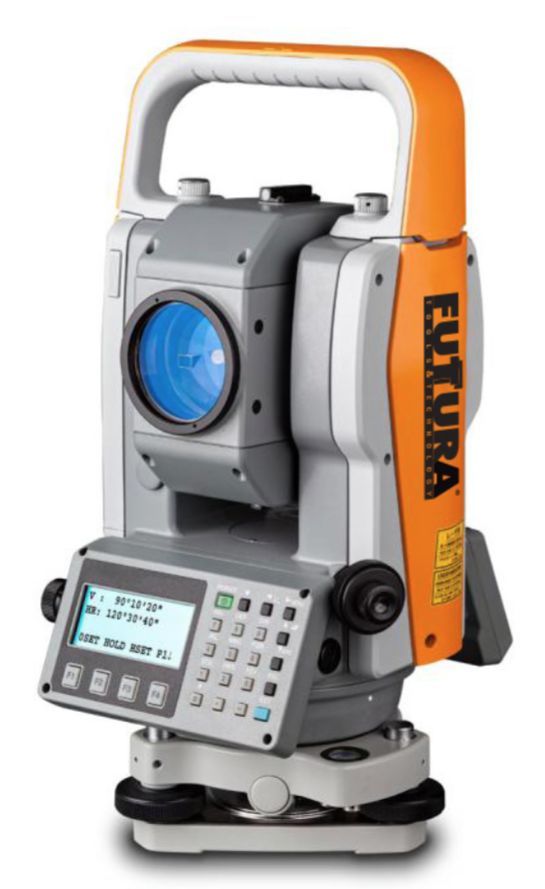

The TS-100 Total Station provides superior performance at an unbeatable price for survey and construction applications. It’s built tough to survive in extreme conditions, yet easy to set up and put to work quickly.

The TS-100 features 200m reflectorless operation and up to 2000m using a single prism. There’s even a built in laser pointer to aid in layout work. The TS-100 is the perfect solution for construction layout and surveying.

Features:

• 2000m range to a single prism
• 200m reflectorless range
• 2" angular accuracy
• 24,000 point memory capacity
• IP54 environmental rating
• 23-hour battery life
• Full 24-key alphanumeric keypad

TS100 Specifications :

• Magnification 30X
• Image Erect
• Field of View 1°30’
• Resolving Power 3.0"
• Minimum Focus Distance 1.3m
• Display Resolution 1"/5"
• Accuracy 2"
• Axis Compensator 1 axis, ±3' (Compensation Range)
• Measuring Range - Reflectorless 200m
• Measuring Range - Prism 2,000m (Single Prism)
• Accuracy - Reflectorless (3+2 ppm x D)mm
• Accuracy - Prism (2+2 ppm x D)mm
• Display Graphic LCD
• Keyboard 24 Alpha-Numeric Keys
• Control Panel 2 Sides
• Data Storage - Internal 24,000 pts
• Interface Serial RS-232C
• Levels - Plate 30" / 2mm
• Levels - Circular 10' / 2mm
• Optical Plummet Magnification 3x
• Dust and Water Protection IP54
• Operating Temperature -20 to 50ºC
• Weight with Battery & Tribrach 4.9kg (10.8 lbs)
• Battery BT-77Q
• 1-Year Manufacturer's Warranty

Includes:

• Topcon TS-100 in Hard Case
• Tool Kit
• Battery
• Rain Cover
• Instruction Manual Disc
• Charger
