A fast, portable hybrid 3D scanner perfectly suited for reflective surfaces and dark colors, paired with Geomagic Essentials software for reverse engineering and (if selected) Geomagic Control X for inspection and metrology.

Einscan HX innovatively integrates LED light and blue laser into one product. Hybrid laser and LED light sources to make EinScan HX compatible with a wider range of object sizes, meeting multiple user needs. High efficiency and reliable results give EinScan HX more application possibilities.
This scanner allows you to improve the adaptability of scanning materials with fewer limitations for a wider range of applications. LED light scanning enables fast 3D scanning. Laser scanning, less sensitive to ambient light, offers better performance at the reflective surface and dark colors.

Features:

- Ideal for scanning medium to large sized objects
- Scan faster and more accurately
- Improved scanning results for dark and reflective objects
- Full colour built-in function
- Ideal for high-quality 3D modelling & reverse engineering

Technical Specificatons:

Scan & Align Speed:
- Rapid Scan: 1,200,000 points/s 20FPS
- Laser Scan: 480,000 points/s 55FPS

Scan Accuracy:
- Rapid Scan: Up to 0.05mm
- Laser Scan: Up to 0.04mm

Volumetric Accuracy:
- Rapid Scan: 0.05+0.1mm/m
- Laser Scan: 0.04+0.06mm/m

Minimum Point Distance:
- Rapid Scan: 0.25mm - 3mm
- Laser Scan: 0.05mm-3mm

Safety:
- Rapid Scan: Blue LED Light (Eye Safe)
- Laser Scan: Blue Laser Crosses (Class 1 - Eye Safe)

Lightweight and Compact:
- 710g
- 108mm x 110mm x 237mm

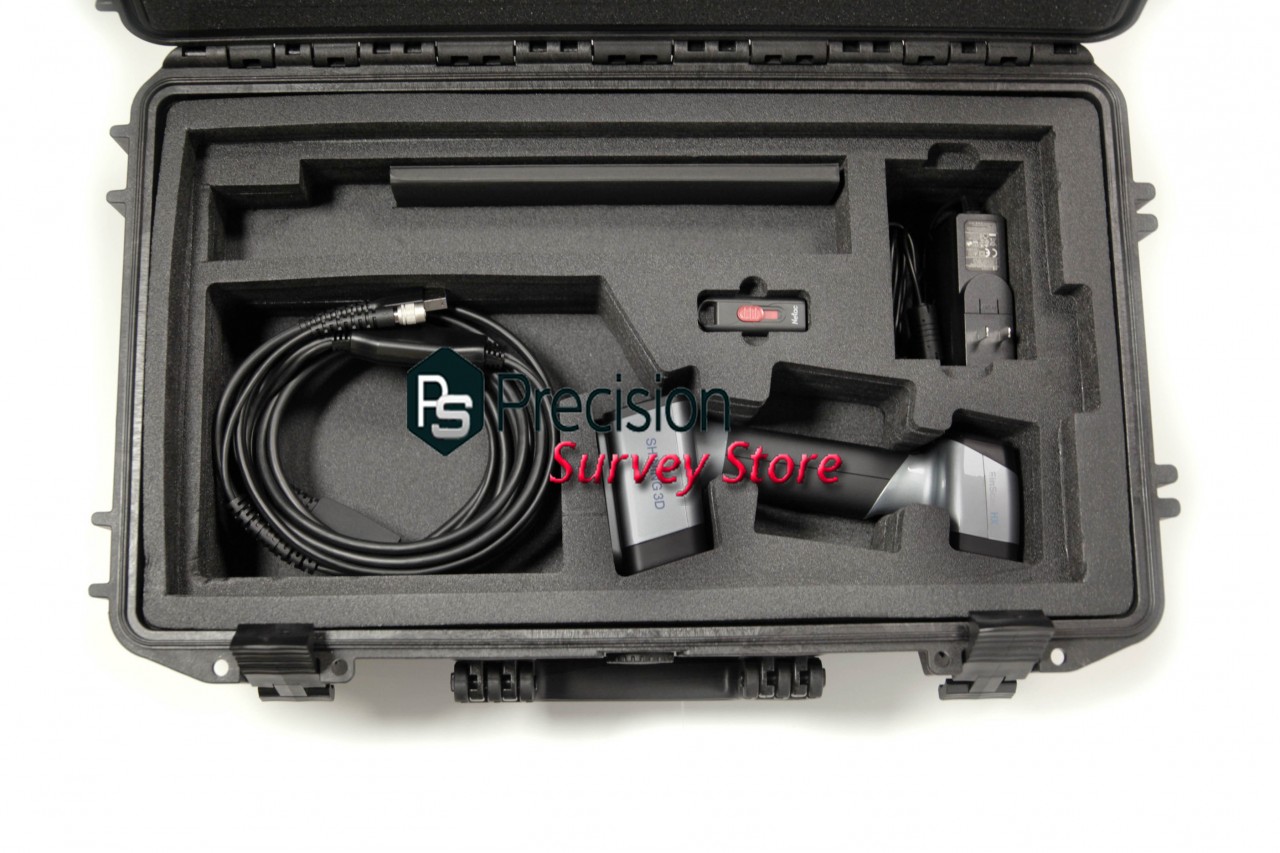

Package Includes:

- 1 3D scanner Einscan HX
- Exscan Software
- Solid Edge Shining3D Edition Software
- Geomagic Software (if the Reverse Engineering pack is selected)
- Geomagic Control X Software (if the Metrology Pack is selected)
- USB cable
- Power adapter
- Power cable
- 1 Calibration board
- 1 Calibration board support
- Markers
- 1 USB drive
- 1 Plug
- 1 year warranty
- Unic-3D Hotline Support
