Trotec IC120 LV Thermal Imaging Camera

Price:

US $1,455.00

Brand:

Trotec

Condition:

New

Shipping:

Free Shipping

Product Description

IC120 LV Infrared Camera

The IC120 LV infrared camera enlarges all the benefits the V-line already has to offer: coming with a powerful 384 x 288 infrared sensor with 110,592 measuring spots and a temperature range from -20 °C to +1,500 °C.

This infrared camera from the LV-series, equipped with a real image camera, a photo lamp, DuoVision display option for real-time display from overlapping IR and real-time image.

The IC120 LV's technical data:

- Temperature range: -20 °C to +1,500 °C

- Accuracy: ±2 °C, ± 2% of the measured value

- Detector type: Focal Plane Array (FPA), uncooled microbolometer

- Detector resolution: 384 x 288 pixels

- Spectral range: 7.5 to 14 µm

- Field Of View (FOV): 24° x 21°

- Geometric resolution: 1.1 mrad

- Thermal sensitivity: 0.05 °C at 30 °C

- Image refresh rate: 50/60 Hz

- Min. focussing distance: 0.10 m

- Display: 3.5 inch LCD, 320 x 240 Pixel

- Laser type: Semiconductor AlGalnP Diode Laser, 1 mw/635 nm red

- Laser classification: Class 2

- Battery type: Rechargeable standard lithium-ion battery, replaceable

- Operating time: ˜2.5 h

- Operating temperature: -15 °C to +50 °C

- Storage temperature: -40 °C to +70 °C

- Protection class: IP 54 IEC 529

- Shockproof to: 25G IEC 68-2-29

- Vibration-proof to: 2G IEC 68-2-6

- Dimensions: 230 x 80 x 195 mm

- Weight: 650 g

More benefits at a glance:

- Digital photo camera: Colour depiction 680 x 480, integrated photo lamp

- Image display pseudo colours, 6 colour palettes

- Image display options IR image, real image, different DuoVision options for combined display of IR and real imaged

- Up to four moveable measuring points (3 x manual and 1 x automatic)

- Isotherm function (between the upper and lower limit values)

- Variably adjustable emission factor from 0.01 to 1.0

- Automatic measurement correction on the basis of user-defined specifications for environmental temperature, distance, relative humidity

- Interchangeable memory card slot for mini-SD card

- 14-bit radiometric IR format

- Adjustable energy saving mode

The integrated memory card slot provides for quick and comfortable memory management and the mini-SD card that is included in the scope of delivery can comfortably store thousands of images.

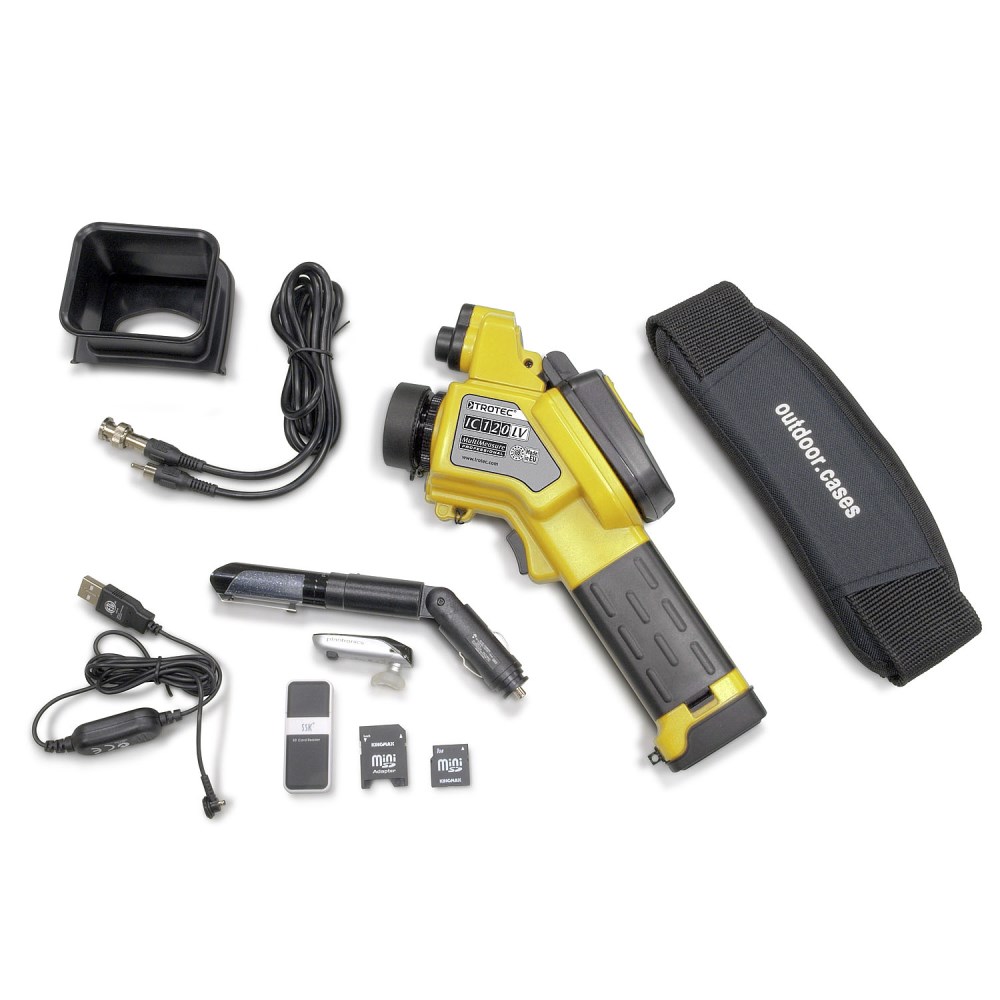

Package Includes:

- Trotec IC120 LV with standard lens, LCD monitor and laser

- 110/230 volt battery charger with charging status indicator

- Li-ion battery

- Mini-SD interchangeable memory card

- Video cable

- Operating instructions

- Carry case

- Software package

- Temperature test certificate

Optional accessories:

- Tripod attachment
