This is a portable handheld clamp-on ultrasonic flow meter or HVAC meter used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 20 … 720 mm / approx. 3/4 ... 28 in.

Measurable liquids include: acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ethyl ether, ethylene glycol, freon R 12, petrol, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, engine oil, diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichlorethylene, 1, 1, 1 - trichloroethane, turpentine, distilled water and sea water.

Specifications:

- Measuring range: -32 ... 32 m/s, -105 ... 105 ft/s
- Resolution: 0.0001 m/s, 0.00033 ft/s
- Pipe size: DN 15 … 700, 20 … 720 mm (approx. 3/4 … 28")
- Sensor temperature range: 0 ... 160°C / 32 ... 320°F
- Sensor installation: V, (N,W)
- Incl. sensors TDS-M1 and TDS-S1
- Ideal for retrofitting
- Installation without process interruption
- Easy assembly
- Accurate and reliable
- No pressure loss
- Maintenance-free, no moving parts
- Wear-free
- Portable devices for control measurements

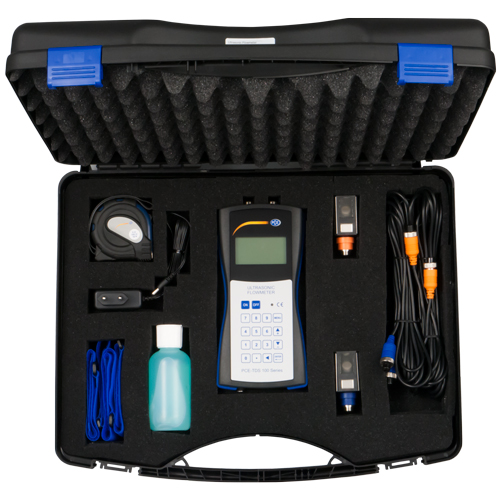

Package Includes:

- 1 x PCE-TDS 100H Ultrasonic flow meter
- 2 x Sensors TDS-M1
- 2 x Sensors TDS-S1
- 4 x 5 m / 16.4 ft transducer connection cables
- 4 x Velcro-strap clamps
- 3 x AAA Ni-H rechargeable batteries
- 1 x Battery charger
- 1 x Container of coupling gel
- 1 x Measuring tape
- 1 x Carrying case
- 1 x User manual
