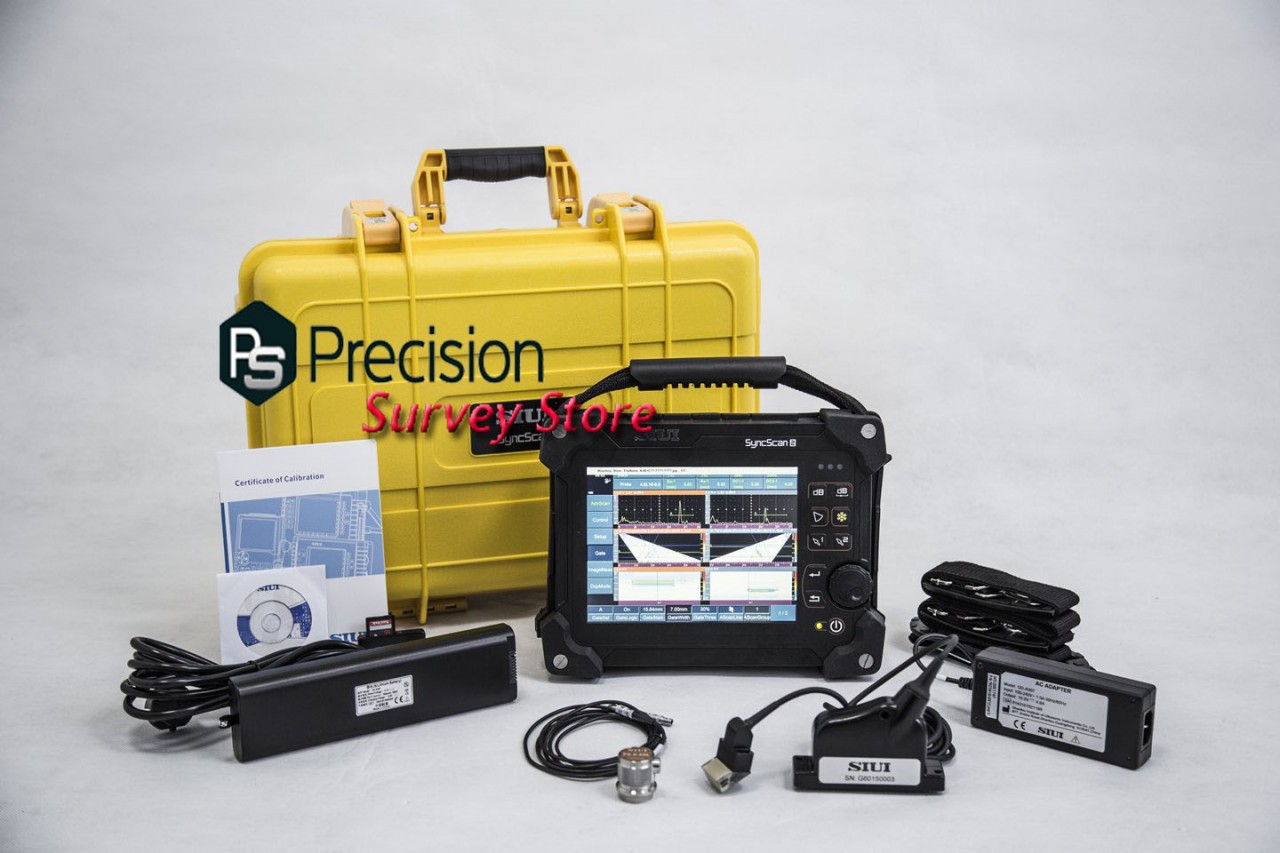

SIUI SyncScan 2 high-end ultrasonic flaw detector with PA 32 : 128 PR and 2-channel TOFD, which can maximize your efficiency for PA and TOFD.

Phased array inspection on tube, forged piece, bar, casting, weld, composite material, railway and alloy steel.

TOFD inspection on weld of plate, pipeline, tank and boiler.

Phased array, TOFD and conventional ultrasonic testing in various industries such as transportation, petrochemical engineering, machinery, metallurgy, railway, shipbuilding, aircraft and building.

Features:

High IP rate: IP 65
Light weight: 4 kg only including battery.
8.4″ LCD with resolution 800 × 600 pixels.
Working temperature: -10 deg C ~ 45 deg C.
Faster scan speed.
Removable electric fan: cool down the system when it works in high temperature.
Support PA / TOFD / UT, suitable for weld, forging and plate inspection.
32-channel PA is more suitable for inspection on extra-thick wall and high-damping material.
32-channel PA and 2-channel TOFD work simultaneously, focusing on pressure vessel inspection.
Support PR mode, focusing on pipe corrosion inspection when connect with high-end twin-crystal PA probe.
System ports: encoder, VGA, standard SD card, USB 2.0 / 3.0.
Probe ports: 4 ports for UT/TOFD probe, 1 port for phased array probe.
