SIUI Smartor Ultrasonic flaw detector and Thickness Gauge

SIUI Smartor Ultrasonic flaw detector & Thickness Gauge
  • SIUI Smartor Ultrasonic flaw detector & Thickness Gauge
Price:
US $4,285.00
Brand:
SIUI
Condition:
New
Shipping:
Free Shipping
Quantity:

Product Description



Smartor:

- Upgradeable
- One-hand Operation
- Flat Weld Simulation
- Smart Test Wizard

Features:

- IP 66 with compact size: 198 (W)* 128 (H) *52 (L) mm
- Light weight: 0.9kg only, including battery
- 5.7" LCD with high resolution 640×480 pixels
- Adjustable pulse width, negative square wave transmission up to 350V.
- Operating frequency range: 0.5~20MHz, multiple steps of wide broadband and narrow-band for selection.
- Easy operation: only a few buttons, intuitive interface and logical menu, support right/left-hand operation, outdoor mode.
- Conventional UT functions:
√ Weld, plate and forging test wizards are available.
√ Peak memory, DAC curve, AGC (Auto gain control), video record makes convenient flaw inspection.
√ Optional functions: B-Scan, TCG, FFT (probe spectral analysis), CSC (curved surface correction), flat weld simulation, crack height measurement, BEA(backwall echo attenuator), AWS, API 5UE.
- Thickness measurement functions:
√ A-scan thickness measurement(echo to echo mode, through coating measurement)
√Auto-search, velocity measurement, alarm and dataset management.
√Optional functions: CoatMode, B-Scan, Multilayers, Vpath, TDG and temperature compensation.
- Norm compliant: EN12668-1: 2010/ASTME317(for UT) and EN15317-2007(for TG)

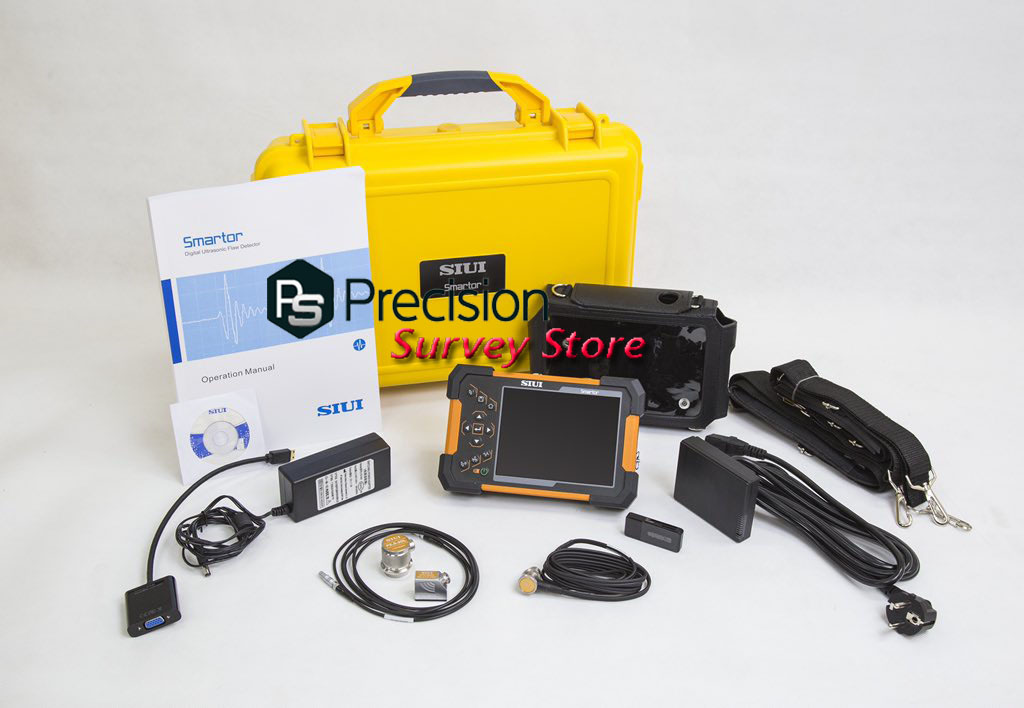

Package Includes:

- Smartor Master + Thickness includes Optional AWS
- TCG
- Flat Weld Groove
- API
- CSC
- Crack Height Measurement
- Probe Spectrum Analysis
- BEA
- Thickness Measurement (TG Echo included)
- TG Multi-Layer Measurement Software
